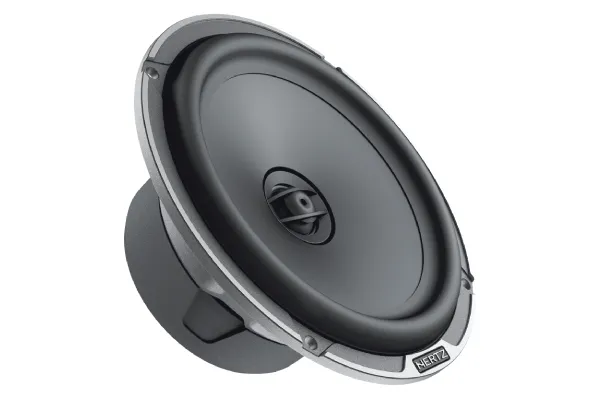

MILLE 6.5”
165 (6.5) mm (in.) | Coaxials | 200 W | 4 Ohm
The coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.
| Technical Specs | |
| Component | Coaxials |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 100 |
| Power Handling – Peak W | 200 |
| Impedance Ohm | 4 |
| Woofer Voice Coil Ø mm (in.) | 36 (1.42) |
| Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 45 ÷ 21,5k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 45 x 17 (3.54 x 1.77 x 0.67) |
| Tweeter Magnet size D x h mm (in.) | 29.5 x 22 x 4 (1.16 x 0.87 x 0.16) |
| Weight of one speaker kg (lb.) | 1.27 (2.8) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Pressed-pulp cone with cotton fibers |
| Dome | Tetolon |
| Xmech mm (in.) | ±6 (0.24) |
| Electro-acoustic Specs | |
| D mm | 132 |
| Re Ohm | 3,1 |
| Fs Hz | 90 |
| Le mH | 0,01 |
| Vas I | 4 |
| Mms g | 18,9 |
| Cms mm/N | 0,15 |
| BL T*m | 5,8 |
| Qts | 0,88 |
| Qes | 1,06 |
| Qms | 5,5 |
| Spl dB | 92 |
Physical Specs
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 74 mm | 2.91 in. |
| D | 62,6 mm | 2.46 in. |
| E | 183,5 mm | 7.22 in. |
| F | 29 mm | 1.14 in. |
Frequency response
