DECI 4”
100 (4) mm (in.) | 50 (2.0) mm (in.) | Two Way Coaxial | 60 W | 4 Ohm

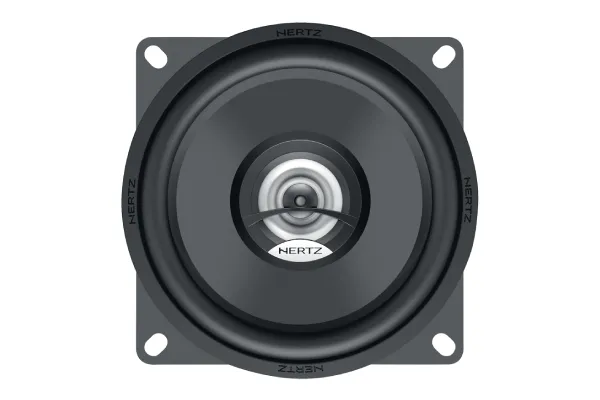

To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 100.3 car audio coaxial is designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.
| Technical Specs | |
| Component | Two way coaxial |
| Size mm (in.) | 100 (4) |
| Power Handling – Continuous W | 30 |
| Power Handling – Peak W | 60 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 50 (2.0) |
| Frequency Response Hz | 70 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 70 x 32 x 10 (2.7 x 1.3 x 0.4) |
| Weight of one speaker kg (lb.) | 0,45 (0.99) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water-repellent pressed paper |
| Dome | PEI |
| Electro-acoustic Specs | |
| D mm | 85 |
| Re Ohm | 3,3 |
| Fs Hz | 115 |
| Vas I | 1,7 |
| Mms g | 5,0 |
| Cms mm/N | 0,38 |
| BL T*m | 3,5 |
| Qts | 0,79 |
| Qes | 0,96 |
| Qms | 4,33 |
| Spl dB | 92 |
