Hertz

CK 165

Price:
$324
CK165

Product Description

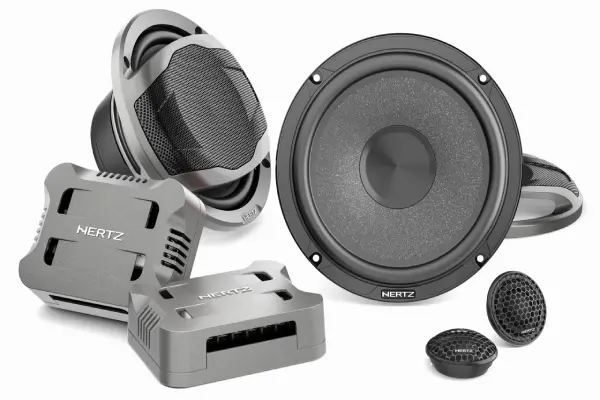

Cento 6.5” splits

165 (6.5) mm (in.) | System | 285 W | 4 Ohm
Two-way systems Cento CK 165 features the new C 26 tweeter featuring a 26 mm (1 in.) Tetolon® dome and 20 mm (0.8 in.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity. Much time was invested in the research of the perfect material for the C 165 woofer cones: through a long process of customization of the materials SPP-M was selected (Semi Pressed Paper-Mica), which preserves the natural sound of the semi-pressed paper and enhances it with Mica powder improving rigidity.

The result is an excellent balance between lightness and damping, essential for a powerful and controlled emission. The oversized ferrite magnet provides excellent control even at higher excursions. The ultra compact CCX 2 crossover featuring tweeter emission level control (0, +3 dB) uses selected components for a full and engaging sound. The CG 165 grilles included in the Cento systems brighten up the car interior with their sophisticated design. Made of high resistance ABS with metal mesh, they offer a high degree of protection within a compact size, ideal for in-car installation.

Technical Specs
Component System
Size mm (in.) 165 (6.5)
Power Handling – Continuous W 95
Power Handling – Peak W 285
Impedance Ohm 4
Tweeter diaphragm mm (in.) 26 (1)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)
Sensitivity dB SPL 93
Frequency Response Hz 55 ÷ 22,5k
Crossover Cut off 2,5 kHz @ 12 dB Oct.
Crossover Type 2 Way Passive Crossover
Weight of one component – Woofer 0,96 (2.12)
Weight of one component – Tweeter kg (lb) 0,03 (0.07)
Weight of one component – Crossover kg (lb) 0,185 (0.41)
Electro-acoustic Specs
D mm 131,5
Re Ohm 3,2
Fs Hz 60
Le mH 0,2
Vas I 13,24
Mms g 13,9
Cms mm/N 0,51
BL T*m 4,9
Qts 0,59
Qes 0,69
Qms 3,9
Spl dB 93
