Zapco

DSP-Z8IVAT

Product Description

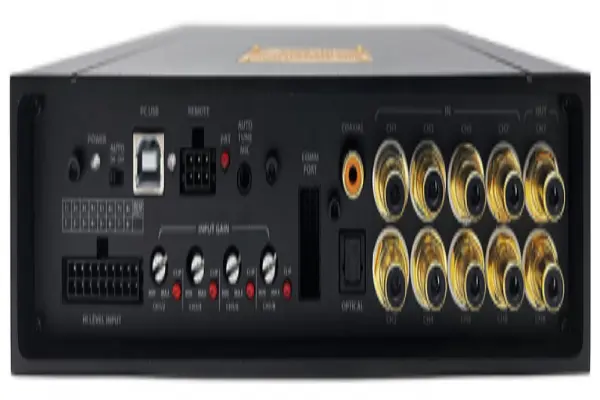

ZAPCO 8-IN 8-OUT DSP WITH AUTOTUNE AND DIGITAL INPUTS

The new and improved Zapco 8-channel DSP comes packed full of features including the new autotune and HD Bluetooth module input.

Inputs:

  • High level
  • RCA
  • Digital coaxial
  • Toslink optical digital inputs or HD Bluetooth comm port input (requires BT-HD Zapco Bluetooth receiver)

Specifications:

  • DSP Processor: Cirrus Logic CS47048
  • Power: 150 MHz/32 bit/192 KHz
  • 8-Channels IN, 8-Channels OUT
  • ADC: Cirrus Logic CS47048 32 bit/192 KHz
  • ADC Dynamic Range/THD: 108 dB/-98 dB
  • DAC: Cirrus Logic CS8422 24 bit/192 KHz
  • DAC Dynamic Range/THD: 140 dB/-120 dB
  • Low level (Pre)/Sensitivity: 1-5 VRMS
  • High Level (Spk In)/Sens.: 2-20 V
  • Optical Digital IN: 24 bit-192 KHz
  • Coaxial Digital IN: 24 bit-192 KHz
  • Freq. Response (-3dB): 10 Hz – 22.5 KHz
  • S/N Ratio only DSP Digital Input: 110 dBA
  • S/N Ratio only DSP Analog Input: 106 dBA
  • THD+N only DSP Digital Input: 0,002 %
  • THD+N only DSP Analog Input: 0,005 %
  • Crosstalk at 1 Khz only DSP: 90 dB
  • F/R?EQ: 1-6 ch Gr. & Par./31 poles
  • Effect EQ: 7-8 ch Gr. & Par./11 poles
  • Mute/Solo: Yes, each channel
  • Time Align. (Range/Steps): 0/15 ms / 0.02 ms
  • Max Delay (Cm/Steps): 515 cm / 0.68 cm
  • Polarity: 0/180°
  • Remote Control included
  • HD-BT Streaming (with optional HD-BT)
  • PC/Display Connection: USB/6-pin Mini DIN
  • Unit Dimensions: 213(W) x 113(L) x 50(H)
